Client: Sri Aurobindo International Institute for Education & Research (SAIIER)

Year: 2015

Location: Auroville

Site Area: 600m2

Built Up Area: approx. 380m2

Typology: Dojo, Sports Facility

Team: Mona, etc.

Contractor: Mohan Constructions

KEY Features:

Simplicity I cost effectiveness with local craftsmanship I light and stillness

PROJECT DESCRIPTION

Budokan Martial Art Dojo located in Dehashakti sports complex, was commissioned by Sri Aurobindo Institute for Integral Education and Research (SAIIER). The Dojo is designed for all kinds of Martial arts, primary one being Aikido, for adults and children classes. The architecture, interior and landscape design of the project was undertaken by the studio.The design of furniture for the changing rooms, reception and specialized needs like the weapon’s rack, shinden frames, sliding doors and window grills were also executed.

DESIGN CONCEPT

The design evolved from the number and size of tatamis required and the specific etiquette followed for an aikido dojo.

The design is based on the climate, context and financial constraints. The Dojo reflects Japanese simplicity and inclusiveness creating a subtle dialogue between the inside and outside.

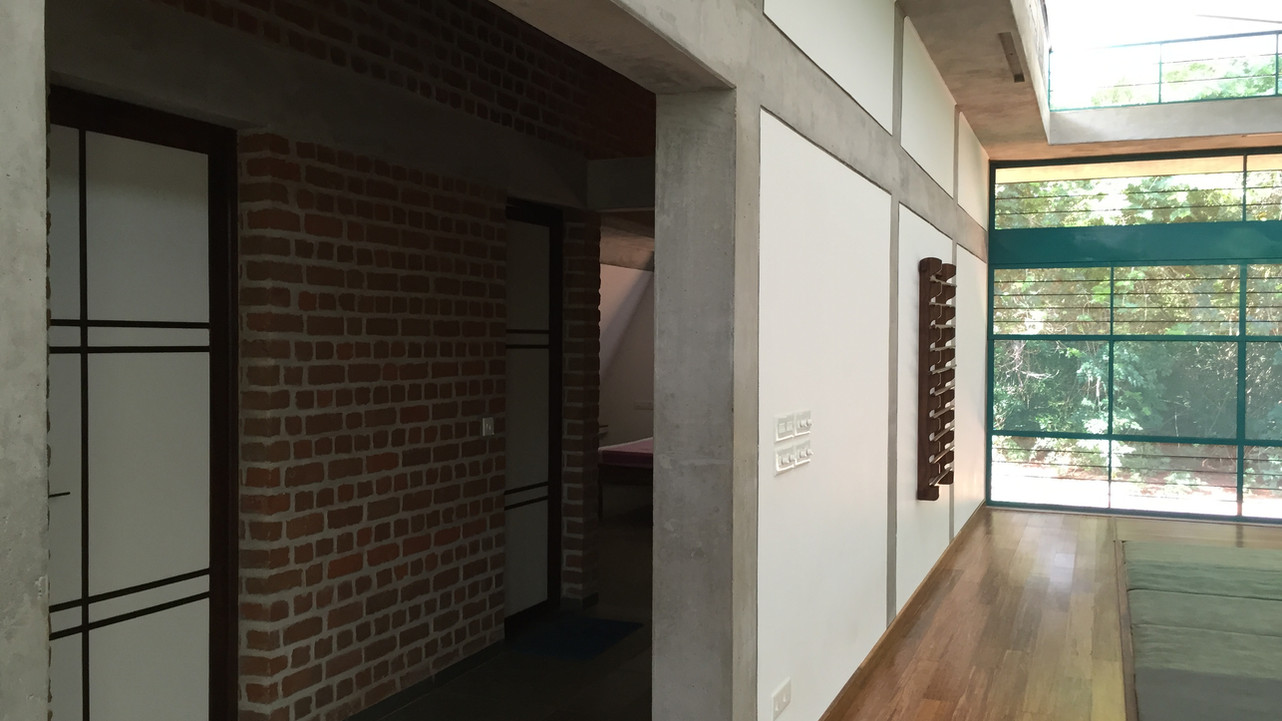

Entrance to Dojo Plan of Dojo based on number and size of tatamis Folded RCC slab Slanted brick wall The Dojo Passage to Dojo

Rainwater spout

KEY CHALLENGES

The project was done under a tight budget and timeline with government grant that imposed following of CPWD rates. Daylighting was an integral part of the design. Diffused lighting provided by folded RCC slab

with hot air extraction at roof level. The Dojo is raised above the ground by 70 cms to avoid termites and other insects.

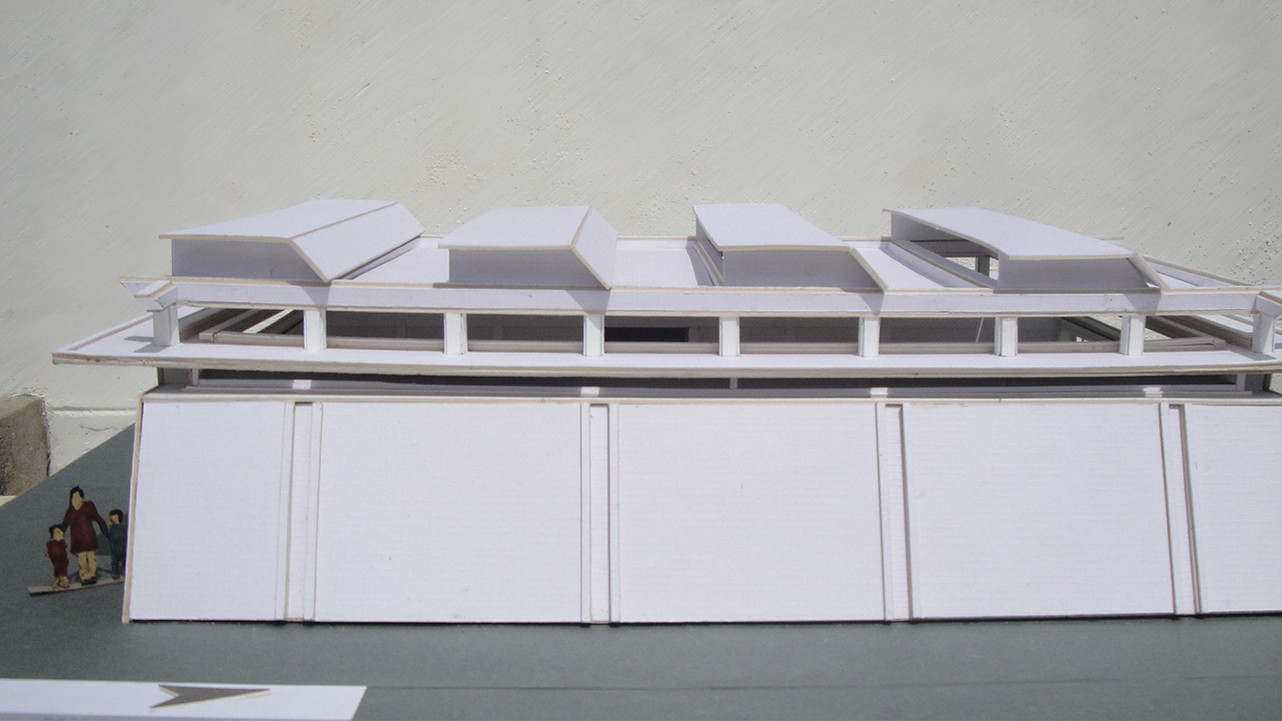

B Designed to let indirect diffused light through folded RCC slab

All the labour for the project came from the surrounding villages. Choice of materials was kept sparse and rustic – exposed brick and concrete, rough cuddapah stone for ancillary areas and eco-friendly bamboo flooring for walkway around tatamis.

This project received the runner-up position, Educational Architecture Category, WADe India Excellence Awards, 2018.
